NSK UCFS308D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFS308D1
Included products
Bearing
Housing
FS308D1
Housing

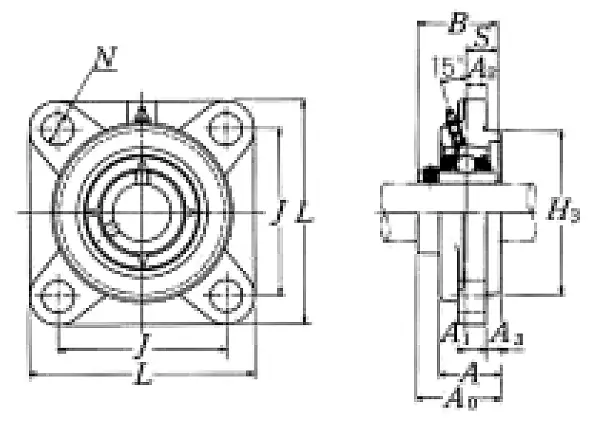

Nominal Dimensions
d
40
mm
Bore diameter
L
150
mm
Overall length
H3
115
mm
Outer diameter of Spigot Joint
J
112
mm
Distance between attachment bolts
A3
10
mm
Height of of Spigot Joint
A2
13
mm
Flange width
A1
17
mm
Flange width
A
40
mm
Base width
A0
56
mm
Overall width
B,B1,B2
52
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
40.5
kN
Basic dynamic load rating
C0r
24
kN
Basic static load rating
Mass
mass
3.1
kg
Mass approx.
