NSK UCFS312D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFS312D1
Included products
Bearing
Housing
FS312D1
Housing

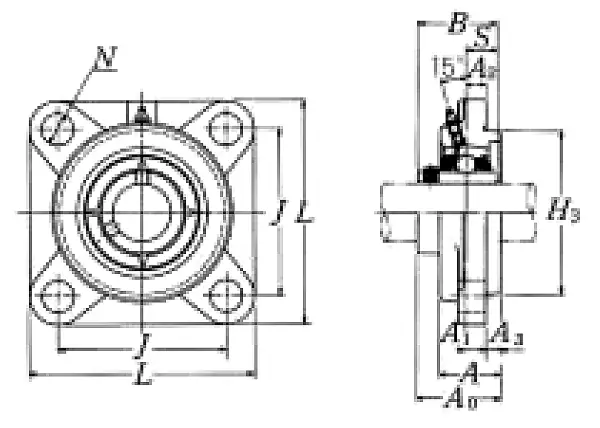

Nominal Dimensions
d
60
mm
Bore diameter
L
195
mm
Overall length
H3
160
mm
Outer diameter of Spigot Joint
J
150
mm
Distance between attachment bolts
A3
14
mm
Height of of Spigot Joint
A2
19
mm
Flange width
A1
22
mm
Flange width
A
56
mm
Base width
A0
78
mm
Overall width
B,B1,B2
71
mm
Width of inner ring
S
26
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
82
kN
Basic dynamic load rating
C0r
52
kN
Basic static load rating
Mass
mass
7
kg
Mass approx.
