NSK UCFS313D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFS313D1
Included products
Bearing
Housing
FS313D1
Housing

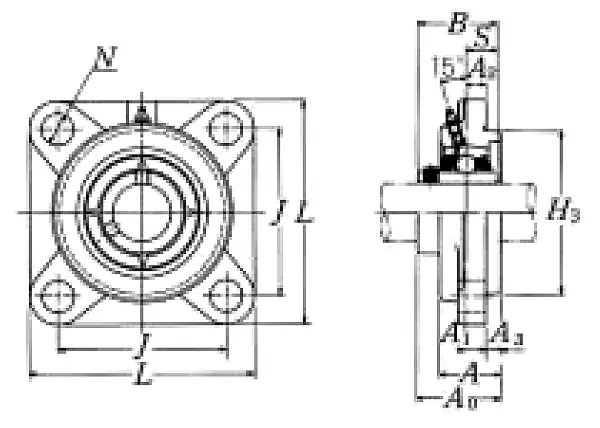

Nominal Dimensions
d
65
mm
Bore diameter
L
208
mm
Overall length
H3
175
mm
Outer diameter of Spigot Joint
J
166
mm
Distance between attachment bolts
A3
18
mm
Height of of Spigot Joint
A2
15
mm
Flange width
A1
22
mm
Flange width
A
58
mm
Base width
A0
78
mm
Overall width
B,B1,B2
75
mm
Width of inner ring
S
30
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
92.5
kN
Basic dynamic load rating
C0r
60
kN
Basic static load rating
Mass
mass
8.6
kg
Mass approx.
