NSK UCFS314D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFS314D1
Included products
Bearing
Housing
FS314D1
Housing

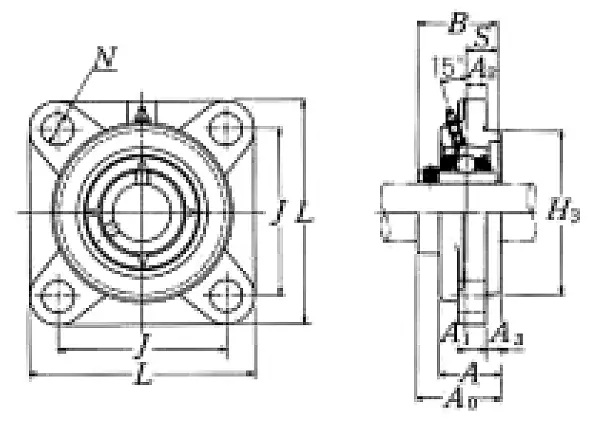

Nominal Dimensions
d
70
mm
Bore diameter
L
226
mm
Overall length
H3
185
mm
Outer diameter of Spigot Joint
J
178
mm
Distance between attachment bolts
A3
18
mm
Height of of Spigot Joint
A2
18
mm
Flange width
A1
25
mm
Flange width
A
61
mm
Base width
A0
81
mm
Overall width
B,B1,B2
78
mm
Width of inner ring
S
33
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
104
kN
Basic dynamic load rating
C0r
68
kN
Basic static load rating
Mass
mass
10
kg
Mass approx.
