NSK UCFS315D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFS315D1
Included products
Bearing
Housing
FS315D1
Housing

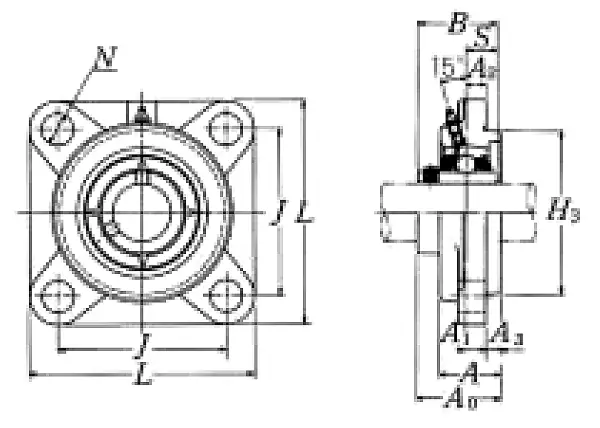

Nominal Dimensions
d
75
mm
Bore diameter
L
236
mm
Overall length
H3
200
mm
Outer diameter of Spigot Joint
J
184
mm
Distance between attachment bolts
A3
18
mm
Height of of Spigot Joint
A2
21
mm
Flange width
A1
25
mm
Flange width
A
66
mm
Base width
A0
89
mm
Overall width
B,B1,B2
82
mm
Width of inner ring
S
32
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
113
kN
Basic dynamic load rating
C0r
77
kN
Basic static load rating
Mass
mass
12
kg
Mass approx.
