NSK UCFS317D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFS317D1
Included products
Bearing
Housing
FS317D1
Housing

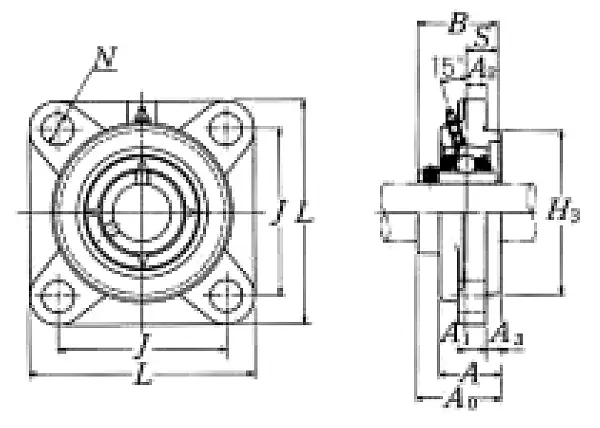

Nominal Dimensions
d
85
mm
Bore diameter
L
260
mm
Overall length
H3
220
mm
Outer diameter of Spigot Joint
J
204
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
24
mm
Flange width
A1
27
mm
Flange width
A
74
mm
Base width
A0
100
mm
Overall width
B,B1,B2
96
mm
Width of inner ring
S
40
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M27
Bolt size
Basic Load Ratings
Cr
133
kN
Basic dynamic load rating
C0r
97
kN
Basic static load rating
Mass
mass
17
kg
Mass approx.
