NSK UCFS318D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFS318D1
Included products
Bearing
Housing
FS318D1
Housing

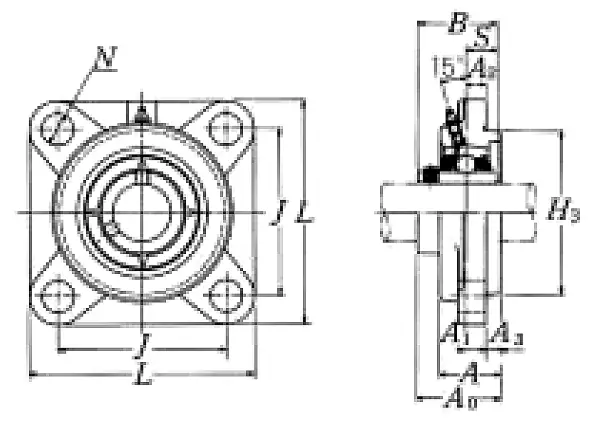

Nominal Dimensions
d
90
mm
Bore diameter
L
280
mm
Overall length
H3
240
mm
Outer diameter of Spigot Joint
J
216
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
24
mm
Flange width
A1
30
mm
Flange width
A
76
mm
Base width
A0
100
mm
Overall width
B,B1,B2
96
mm
Width of inner ring
S
40
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
143
kN
Basic dynamic load rating
C0r
107
kN
Basic static load rating
Mass
mass
20
kg
Mass approx.
