NSK UCFS319D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFS319D1
Included products
Bearing
Housing
FS319D1
Housing

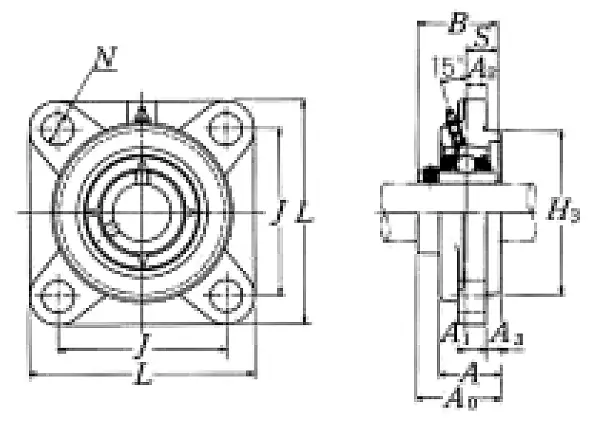

Nominal Dimensions
d
95
mm
Bore diameter
L
290
mm
Overall length
H3
250
mm
Outer diameter of Spigot Joint
J
228
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
39
mm
Flange width
A1
30
mm
Flange width
A
94
mm
Base width
A0
121
mm
Overall width
B,B1,B2
103
mm
Width of inner ring
S
41
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
153
kN
Basic dynamic load rating
C0r
119
kN
Basic static load rating
Mass
mass
24
kg
Mass approx.
