NSK UCFS322D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFS322D1
Included products
Bearing
Housing
FS322D1
Housing

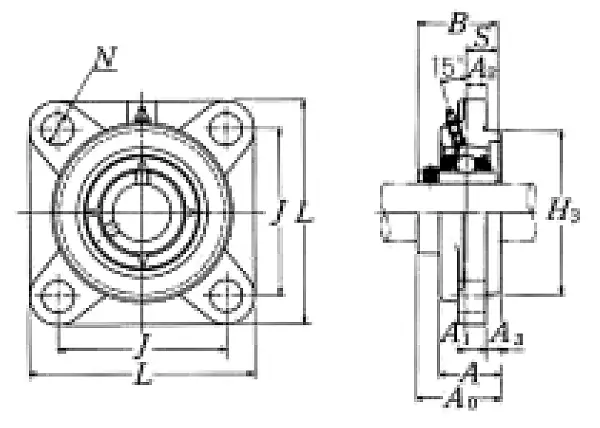

Nominal Dimensions
d
110
mm
Bore diameter
L
340
mm
Overall length
H3
300
mm
Outer diameter of Spigot Joint
J
266
mm
Distance between attachment bolts
A3
25
mm
Height of of Spigot Joint
A2
35
mm
Flange width
A1
35
mm
Flange width
A
96
mm
Base width
A0
131
mm
Overall width
B,B1,B2
117
mm
Width of inner ring
S
46
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M36
Bolt size
Basic Load Ratings
Cr
205
kN
Basic dynamic load rating
C0r
179
kN
Basic static load rating
Mass
mass
38
kg
Mass approx.
