NSK UCFX07D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFX07D1
Included products
Bearing
Housing
FX07D1
Housing

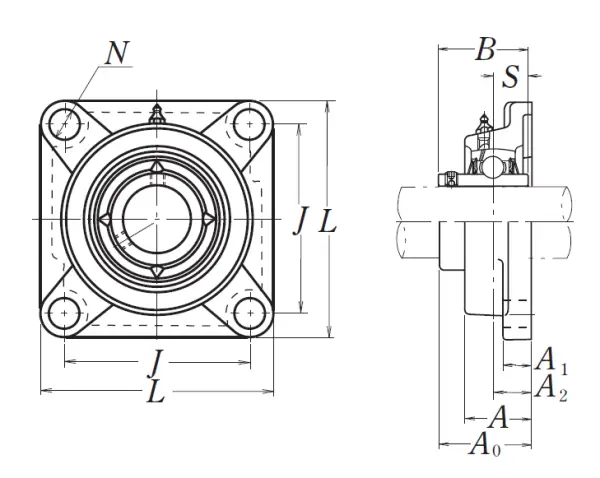

Nominal Dimensions
d
35
mm
Bore diameter
L
130
mm
Overall length
J
102
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
21
mm
Flange width
A1
14
mm
Flange width
A
38
mm
Base width
A0
51.2
mm
Overall width
B,B1,B2
49.2
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
2.1
kg
Mass approx.
