NSK UCFX10D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFX10D1
Included products
Bearing
Housing
FX10D1
Housing

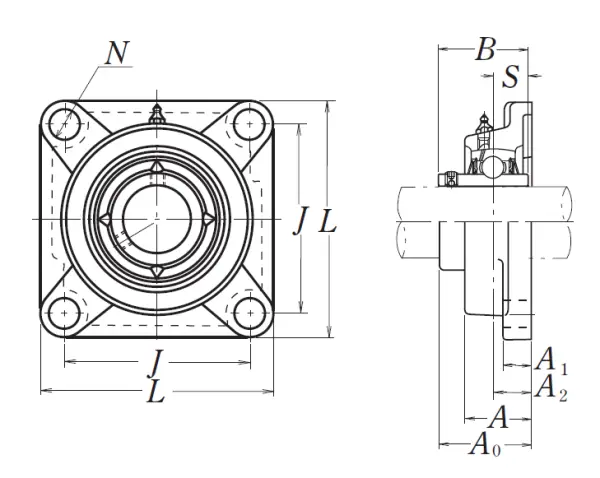

Nominal Dimensions
d
50
mm
Bore diameter
L
162
mm
Overall length
J
130
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
26
mm
Flange width
A1
20
mm
Flange width
A
44
mm
Base width
A0
59.4
mm
Overall width
B,B1,B2
55.6
mm
Width of inner ring
S
22.2
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
Mass
mass
3.8
kg
Mass approx.
