NSK UCFX13D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFX13D1
Included products
Bearing
Housing
FX13D1
Housing

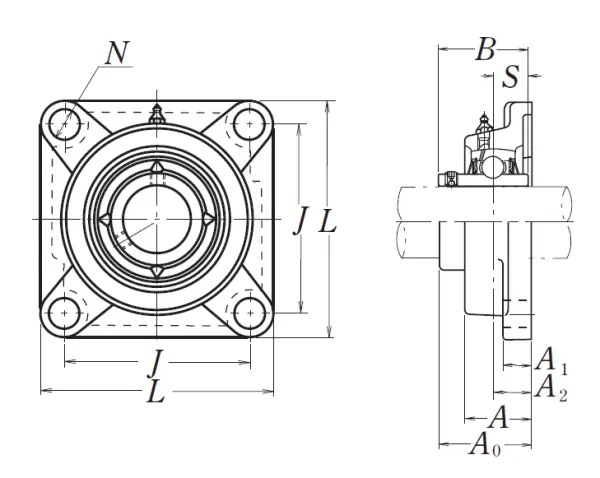

Nominal Dimensions
d
65
mm
Bore diameter
L
187
mm
Overall length
J
149
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
34
mm
Flange width
A1
21
mm
Flange width
A
59
mm
Base width
A0
78.4
mm
Overall width
B,B1,B2
74.6
mm
Width of inner ring
S
30.2
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
44
kN
Basic static load rating
Mass
mass
6.7
kg
Mass approx.
