NSK UCFX16D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFX16D1
Included products
Bearing
Housing
FX16D1
Housing

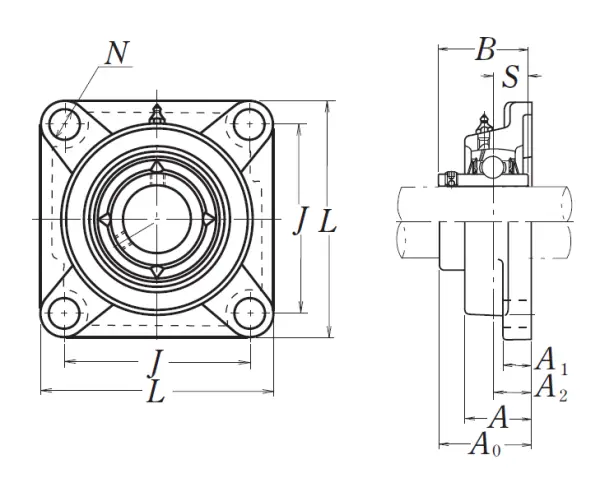

Nominal Dimensions
d
80
mm
Bore diameter
L
214
mm
Overall length
J
171
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A2
40
mm
Flange width
A1
24
mm
Flange width
A
70
mm
Base width
A0
91.6
mm
Overall width
B,B1,B2
85.7
mm
Width of inner ring
S
34.1
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
83.5
kN
Basic dynamic load rating
C0r
64
kN
Basic static load rating
Mass
mass
11
kg
Mass approx.
