NSK UELFU206D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UELFU206D1
Included products
Bearing
Housing
FU206D1
Housing

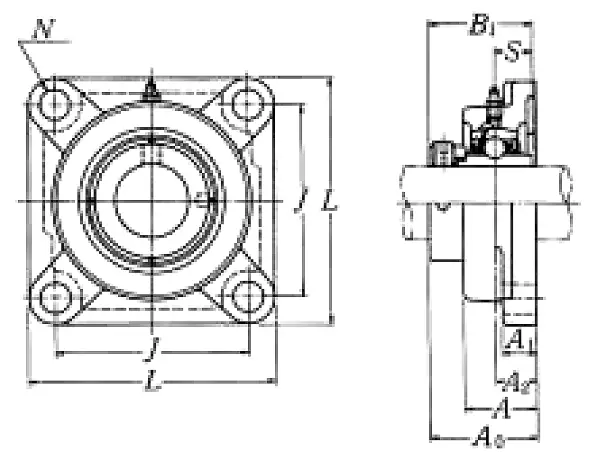

Nominal Dimensions
d
30
mm
Bore diameter
L
109
mm
Overall length
J
82.5
mm
Distance between attachment bolts
N
11.5
mm
Diameter of attachment bolt hole
A2
20
mm
Flange width
A1
16
mm
Flange width
A
33
mm
Base width
A0
50.1
mm
Overall width
B,B1,B2
48.4
mm
Width of inner ring
S
18.25
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
1.4
kg
Mass approx.
