NSK UELFU207D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UELFU207D1
Included products
Bearing
Housing
FU207D1
Housing

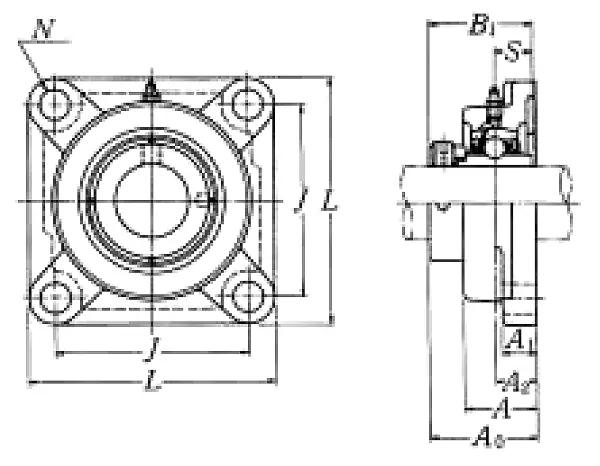

Nominal Dimensions
d
35
mm
Bore diameter
L
118
mm
Overall length
J
92
mm
Distance between attachment bolts
N
14
mm
Diameter of attachment bolt hole
A2
21
mm
Flange width
A1
17
mm
Flange width
A
36
mm
Base width
A0
53.3
mm
Overall width
B,B1,B2
51.1
mm
Width of inner ring
S
18.8
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.7
kg
Mass approx.
