NSK UELFU211D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UELFU211D1
Included products
Bearing
Housing
FU211D1
Housing

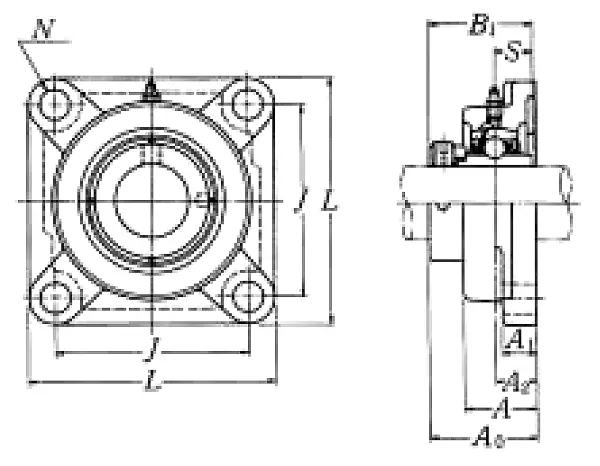

Nominal Dimensions
d
55
mm
Bore diameter
L
163
mm
Overall length
J
130
mm
Distance between attachment bolts
N
18
mm
Diameter of attachment bolt hole
A2
31
mm
Flange width
A1
21
mm
Flange width
A
49
mm
Base width
A0
74.6
mm
Overall width
B,B1,B2
71.4
mm
Width of inner ring
S
27.75
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
Mass
mass
3.9
kg
Mass approx.
