NSK UKF210D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKF210D1
Included products
Bearing
Housing
F210D1
Housing
Associated products
Adapter sleeve

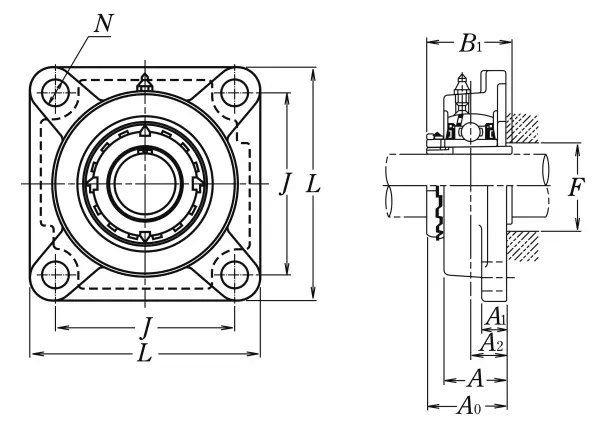

Nominal Dimensions
d
45
mm
Bore diameter
L
143
mm
Overall length
J
111
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
16
mm
Flange width
A
40
mm
Base width
A0
50
mm
Overall width
B,B1,B2
55
mm
Width of inner ring
F
57
mm
Diameter of housing abutment
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
