NSK UKF213D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKF213D1
Included products
Bearing
Housing
F213D1
Housing
Associated products
Adapter sleeve

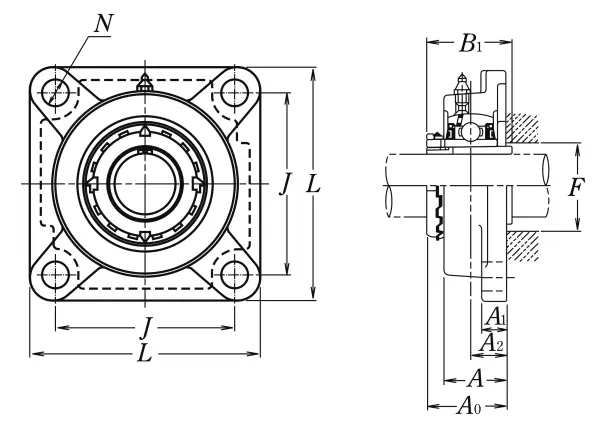

Nominal Dimensions
d
60
mm
Bore diameter
L
187
mm
Overall length
J
149
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
30
mm
Flange width
A1
22
mm
Flange width
A
50
mm
Base width
A0
64
mm
Overall width
B,B1,B2
65
mm
Width of inner ring
F
74
mm
Diameter of housing abutment
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
57.5
kN
Basic dynamic load rating
C0r
40
kN
Basic static load rating
