NSK UKF319D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKF319D1
Included products
Bearing
Housing
F319D1
Housing
Associated products
Adapter sleeve

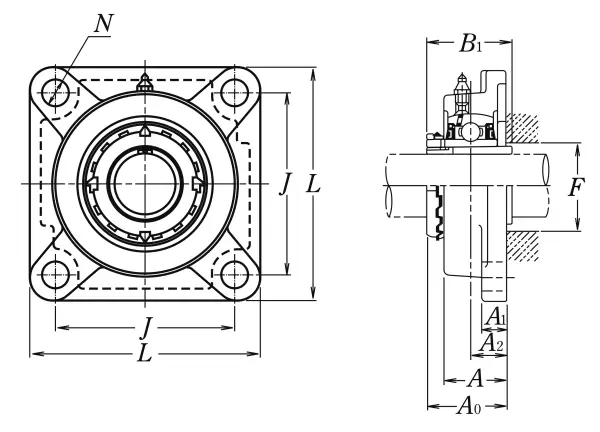

Nominal Dimensions
d
85
mm
Bore diameter
L
290
mm
Overall length
J
228
mm
Distance between attachment bolts
N
35
mm
Diameter of attachment bolt hole
A2
59
mm
Flange width
A1
30
mm
Flange width
A
94
mm
Base width
A0
111.5
mm
Overall width
B,B1,B2
90
mm
Width of inner ring
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
153
kN
Basic dynamic load rating
C0r
119
kN
Basic static load rating
