NSK UKFS306D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFS306D1
Included products
Bearing
Housing
FS306D1
Housing
Associated products
Adapter sleeve

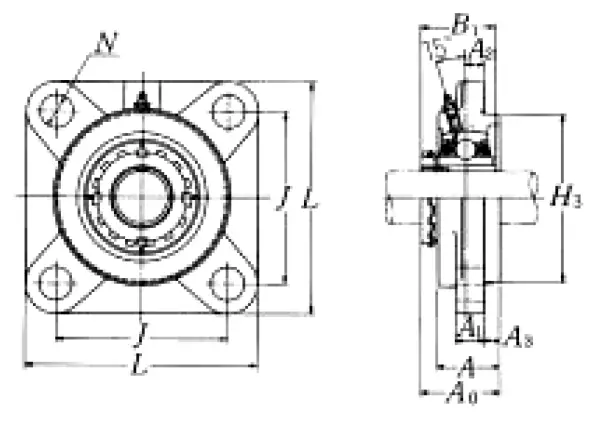

Nominal Dimensions
d
25
mm
Bore diameter
L
125
mm
Overall length
H3
90
mm
Outer diameter of Spigot Joint
J
95
mm
Distance between attachment bolts
A3
8
mm
Height of of Spigot Joint
A2
10
mm
Flange width
A1
15
mm
Flange width
A
32
mm
Base width
A0
40.5
mm
Overall width
B,B1,B2
38
mm
Width of inner ring
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
26.7
kN
Basic dynamic load rating
C0r
15
kN
Basic static load rating
