NSK UKFS310D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFS310D1
Included products
Bearing
Housing
FS310D1
Housing
Associated products
Adapter sleeve

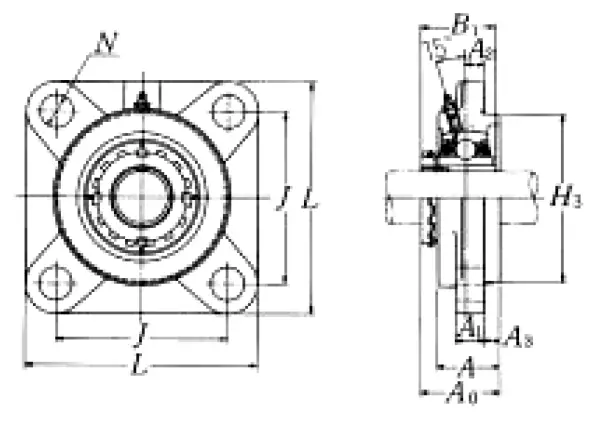

Nominal Dimensions
d
45
mm
Bore diameter
L
175
mm
Overall length
H3
140
mm
Outer diameter of Spigot Joint
J
132
mm
Distance between attachment bolts
A3
12
mm
Height of of Spigot Joint
A2
16
mm
Flange width
A1
19
mm
Flange width
A
48
mm
Base width
A0
60.5
mm
Overall width
B,B1,B2
55
mm
Width of inner ring
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
38.5
kN
Basic static load rating
