NSK UKFS316D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFS316D1
Included products
Bearing
Housing
FS316D1
Housing
Associated products
Adapter sleeve

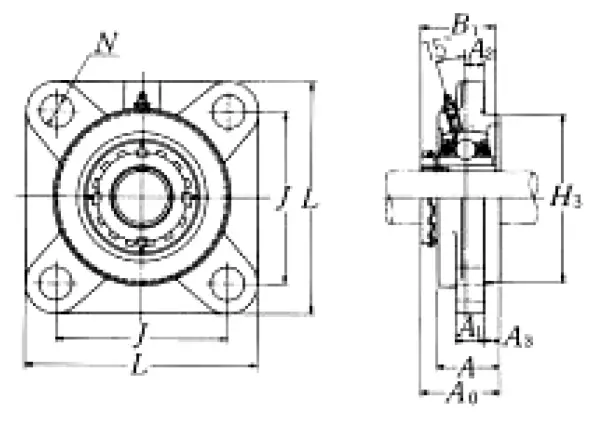

Nominal Dimensions
d
70
mm
Bore diameter
L
250
mm
Overall length
H3
210
mm
Outer diameter of Spigot Joint
J
196
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
18
mm
Flange width
A1
27
mm
Flange width
A
68
mm
Base width
A0
84
mm
Overall width
B,B1,B2
78
mm
Width of inner ring
Mounting information
G
M27
Bolt size
Basic Load Ratings
Cr
123
kN
Basic dynamic load rating
C0r
86.5
kN
Basic static load rating
