NSK UKFS320D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFS320D1
Included products
Bearing
Housing
FS320D1
Housing
Associated products
Adapter sleeve

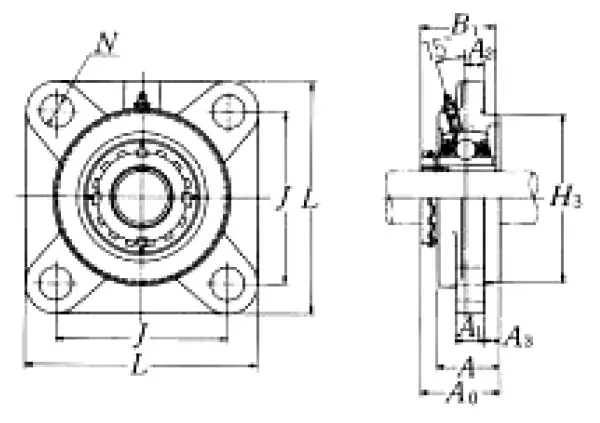

Nominal Dimensions
d
90
mm
Bore diameter
L
310
mm
Overall length
H3
260
mm
Outer diameter of Spigot Joint
J
242
mm
Distance between attachment bolts
A3
20
mm
Height of of Spigot Joint
A2
39
mm
Flange width
A1
32
mm
Flange width
A
94
mm
Base width
A0
115.5
mm
Overall width
B,B1,B2
97
mm
Width of inner ring
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
