NSK UKFS322D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFS322D1
Included products
Bearing
Housing
FS322D1
Housing
Associated products
Adapter sleeve

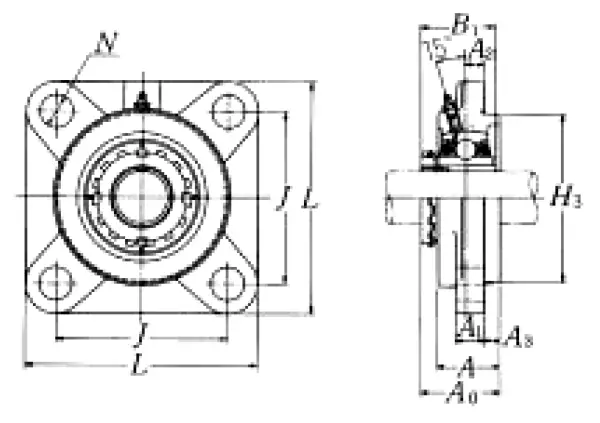

Nominal Dimensions
d
100
mm
Bore diameter
L
340
mm
Overall length
H3
300
mm
Outer diameter of Spigot Joint
J
266
mm
Distance between attachment bolts
A3
25
mm
Height of of Spigot Joint
A2
35
mm
Flange width
A1
35
mm
Flange width
A
96
mm
Base width
A0
121
mm
Overall width
B,B1,B2
105
mm
Width of inner ring
Mounting information
G
M36
Bolt size
Basic Load Ratings
Cr
205
kN
Basic dynamic load rating
C0r
179
kN
Basic static load rating
