NSK UKFX09D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFX09D1
Included products
Bearing
Housing
FX09D1
Housing
Associated products
Adapter sleeve

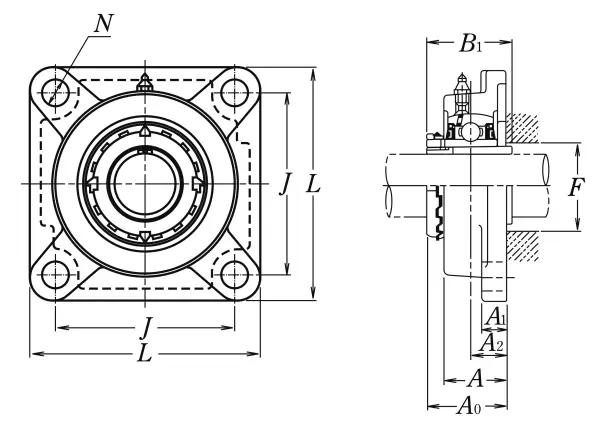

Nominal Dimensions
d
40
mm
Bore diameter
L
143
mm
Overall length
J
111
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
23
mm
Flange width
A1
14
mm
Flange width
A
40
mm
Base width
A0
50
mm
Overall width
B,B1,B2
50
mm
Width of inner ring
F
52
mm
Diameter of housing abutment
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
