NSK ZM-UCF205D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ZM-UCF205D1
Included products
Bearing
Housing
F205D1
Housing

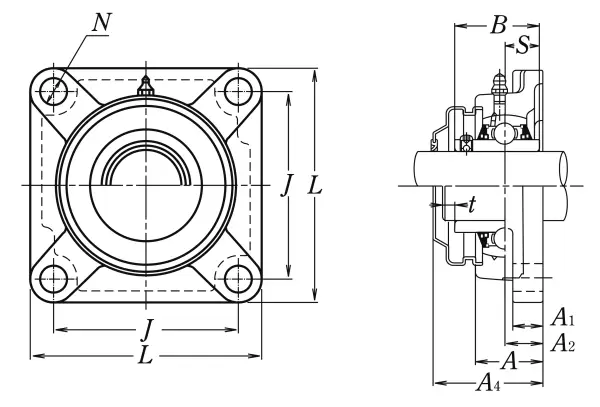

Nominal Dimensions
d
25
mm
Bore diameter
L
95
mm
Overall length
J
70
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A2
16
mm
Flange width
A1
13
mm
Flange width
A
27
mm
Base width
A4
40
mm
Width including end cover
A0
35.8
mm
Overall width
B,B1,B2
34.1
mm
Width of inner ring
t
2
mm
Clearance
S
14.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
0.8
kg
Mass approx.
