NSK ZM-UCF207D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ZM-UCF207D1
Included products
Bearing
Housing
F207D1
Housing

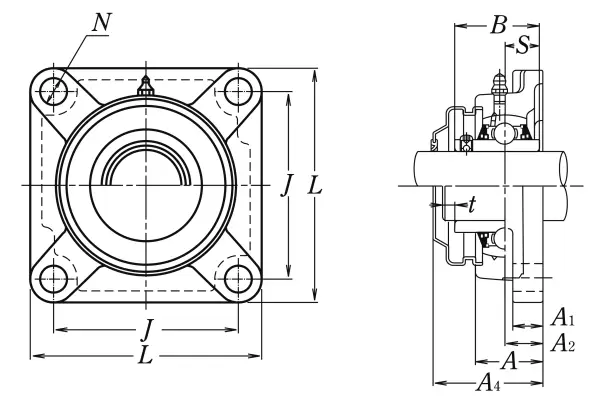

Nominal Dimensions
d
35
mm
Bore diameter
L
117
mm
Overall length
J
92
mm
Distance between attachment bolts
N
14
mm
Diameter of attachment bolt hole
A2
19
mm
Flange width
A1
15
mm
Flange width
A
34
mm
Base width
A4
49
mm
Width including end cover
A0
44.4
mm
Overall width
B,B1,B2
42.9
mm
Width of inner ring
t
3
mm
Clearance
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.5
kg
Mass approx.
