NSK ZM-UKF208D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
ZM-UKF208D1
Included products
Bearing
Housing
F208D1
Housing
Associated products
Adapter sleeve

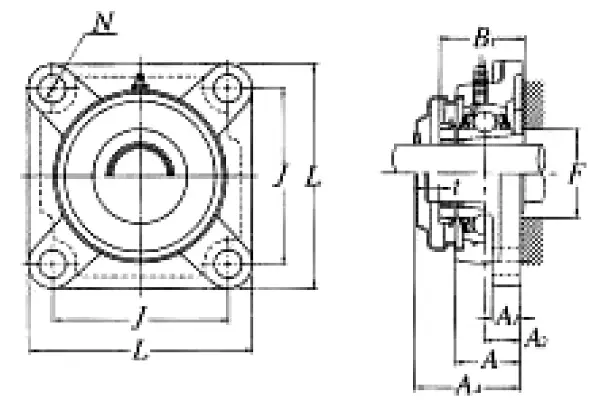

Nominal Dimensions
d
35
mm
Bore diameter
L
130
mm
Overall length
J
102
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
21
mm
Flange width
A1
15
mm
Flange width
A
36
mm
Base width
A4
56
mm
Width including end cover
A0
46.5
mm
Overall width
B,B1,B2
46
mm
Width of inner ring
F
46
mm
Diameter of housing abutment
t
3
mm
Clearance
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
