NSK ZM-UKF209D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
ZM-UKF209D1
Included products
Bearing
Housing
F209D1
Housing
Associated products
Adapter sleeve

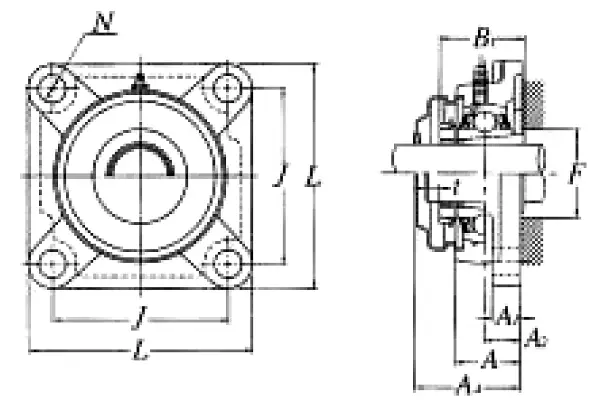

Nominal Dimensions
d
40
mm
Bore diameter
L
137
mm
Overall length
J
105
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
16
mm
Flange width
A
38
mm
Base width
A4
57
mm
Width including end cover
A0
48.5
mm
Overall width
B,B1,B2
50
mm
Width of inner ring
F
52
mm
Diameter of housing abutment
t
3
mm
Clearance
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
