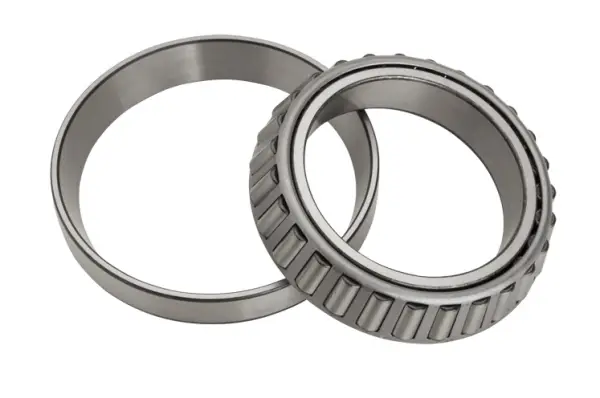

NTN 07079/07196
Tapered Roller Set - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Case Carburized Steel
Limiting Speed - Grease
7500 RPM
Style
Cone & Cup
Precision Rating
Class 4
Cone Number
07079
Cup Number
07196
Configuration
One
Lubrication
w/o Oil Hole
e (Axial Load Factor)
0.40
Y2 (Axial Load Factor)
1.49
Static Load Rating
27900 N
Dynamic Load Rating
26000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

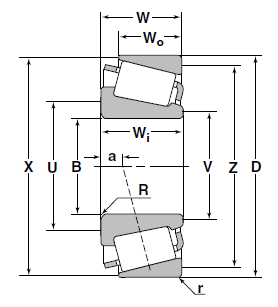

Dimensional Specifications
B
20.000 mm
D
50.005 mm
Wo
9.525 mm
Wi
14.260 mm
W
13.495 mm
r
1.000 mm
R
1.5 mm
a (Effective Load Center)
3.000 mm
U
27.5 mm
V
26.0 mm
X
47.0 mm
Z
44.5 mm
ras max
2.000 mm
r1as max
1.000 mm
