NTN 1200
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
28000 RPM
Limiting Speed - Grease
22000 RPM
Y1
2.00
Y2
3.10
Y0
2.10
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
1190 N
Dynamic Load Rating
5550 N
Enclosure
Open
Weight
0.032 kg
Operating Temperature Range
-40 to 120 ºC

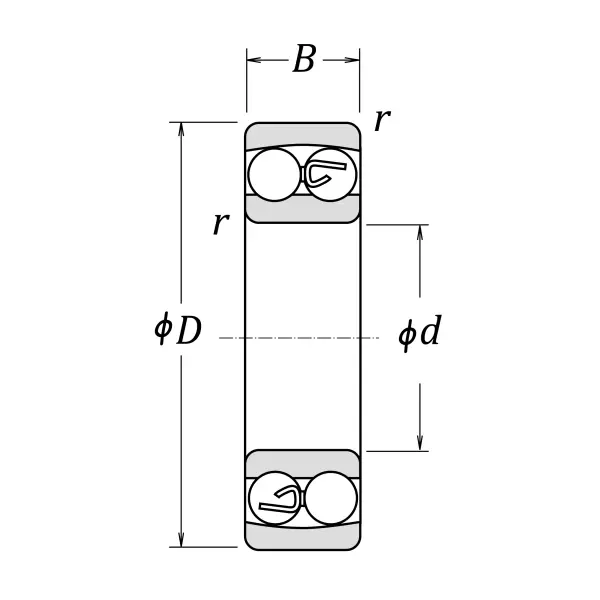

Dimensional Specifications
d
10.000 mm
D
30.000 mm
B
9.000 mm
r
0.600 mm
da min
14.000 mm
Da max
26.000 mm
ras max
0.600 mm
