NTN 1204K
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Oil
17000 RPM
Limiting Speed - Grease
14000 RPM
Y1
2.20
Y2
3.40
Y0
2.30
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
2610 N
Dynamic Load Rating
10000 N
Enclosure
Open
Weight
0.111 kg
Operating Temperature Range
-40 to 120 ºC

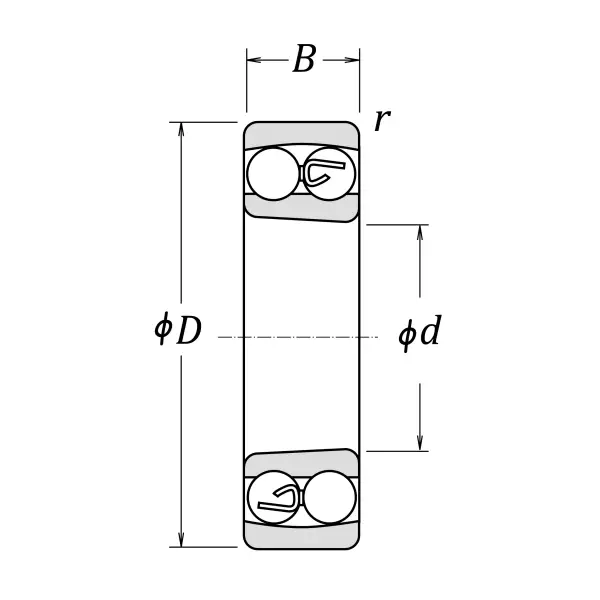

Dimensional Specifications
d
20.000 mm
D
47.000 mm
B
14.000 mm
r
1.000 mm

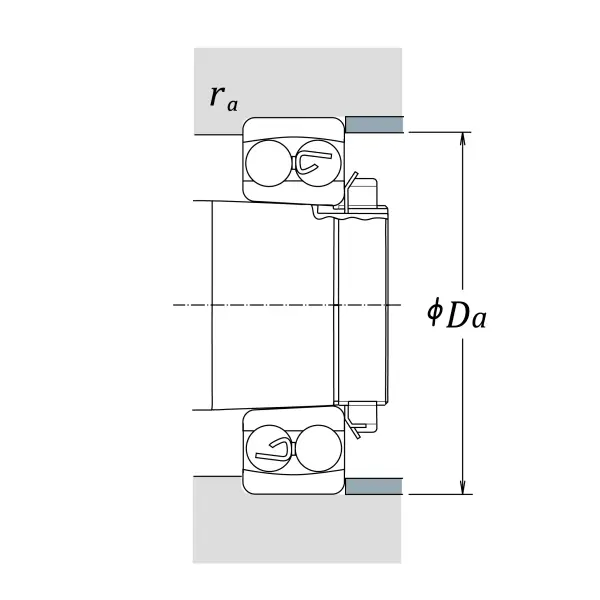

da min
25.000 mm
Da max
42.000 mm
ras max
1.000 mm
