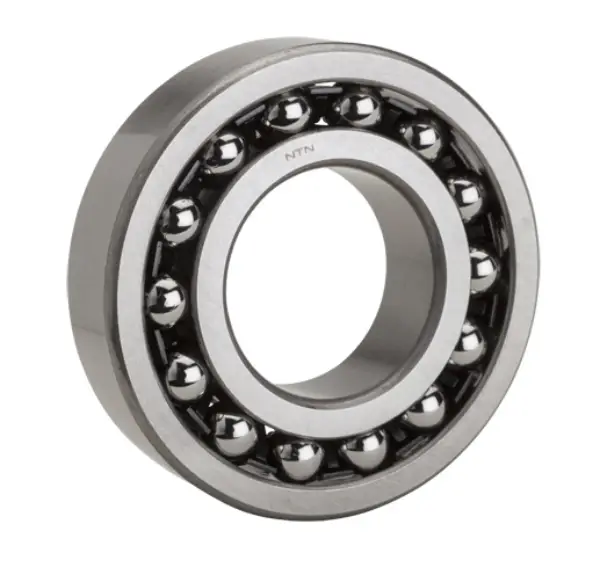

NTN 1207L1C3
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Machined
Cage Material
Brass
Ball Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
8500 RPM
Y1
2.70
Y2
4.20
Y0
2.80
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
5100 N
Dynamic Load Rating
15900 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

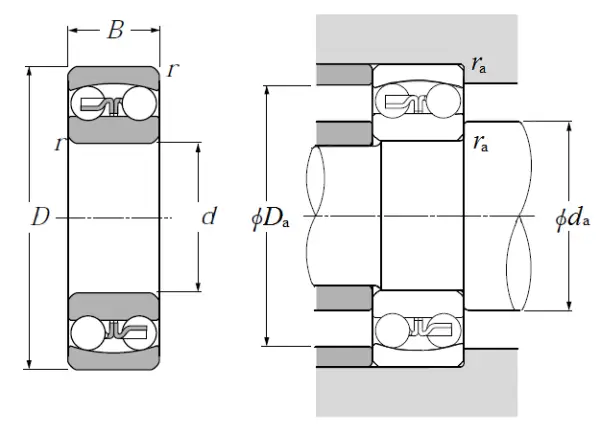

Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
17.000 mm
r
1.100 mm
da min
41.500 mm
Da max
65.500 mm
ras max
1.000 mm
