NTN 1217K
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4500 RPM
Limiting Speed - Grease
3800 RPM
Y1
3.70
Y2
5.70
Y0
3.80
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
20800 N
Dynamic Load Rating
49500 N
Enclosure
Open
Weight
2.002 kg
Operating Temperature Range
-40 to 120 ºC

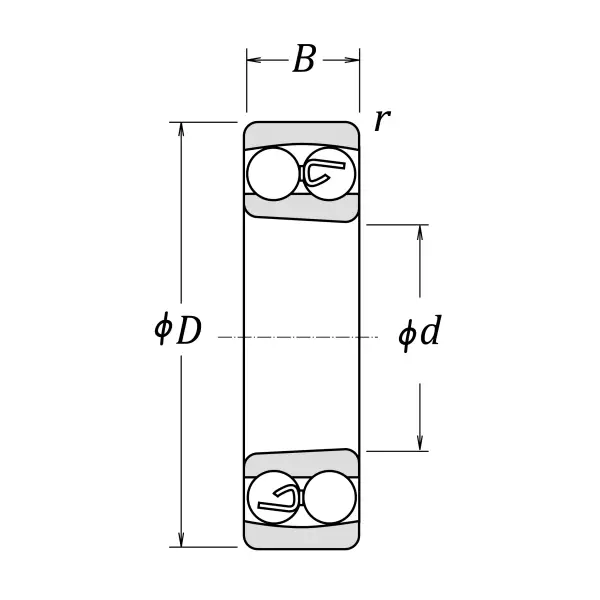

Dimensional Specifications
d
85.000 mm
D
150.000 mm
B
28.000 mm
r
2.000 mm

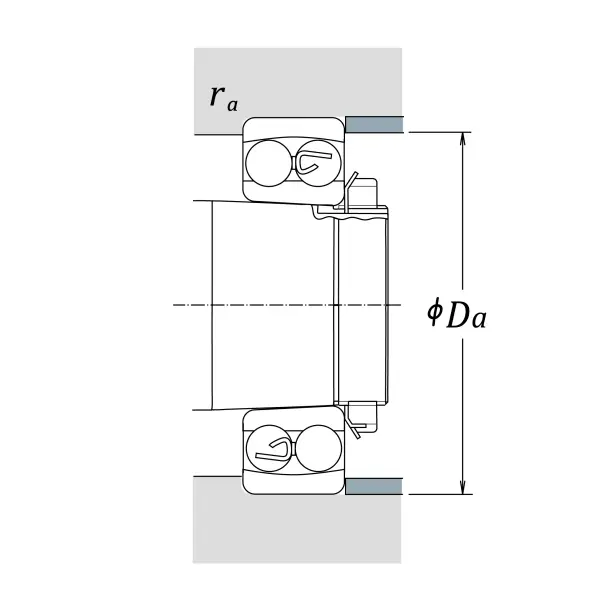

da min
94.000 mm
Da max
141.000 mm
ras max
2.000 mm
