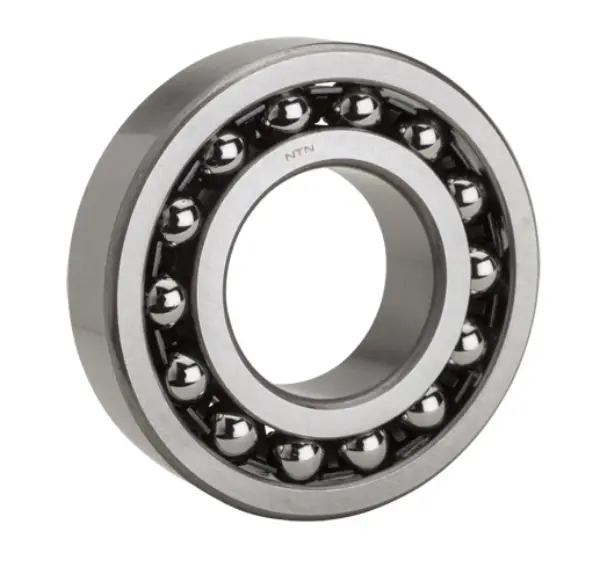

NTN 1219C3
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
4000 RPM
Limiting Speed - Grease
3400 RPM
Y1
3.70
Y2
5.80
Y0
3.90
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
27100 N
Dynamic Load Rating
64000 N
Enclosure
Open
Weight
3.047 kg
Operating Temperature Range
-40 to 120 ºC

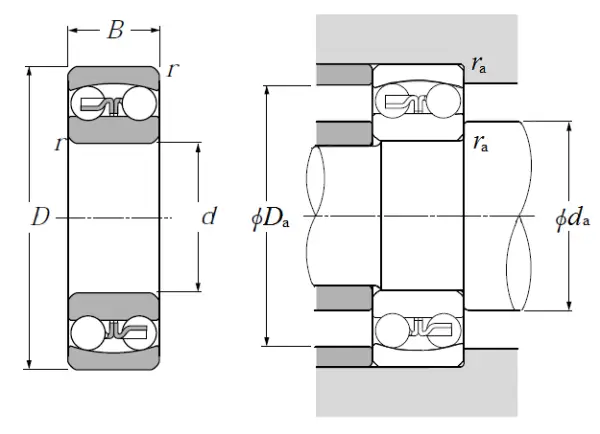

Dimensional Specifications
d
95.000 mm
D
170.000 mm
B
32.000 mm
r
2.100 mm
da min
106.000 mm
Da max
159.000 mm
ras max
2.000 mm
