NTN 1226

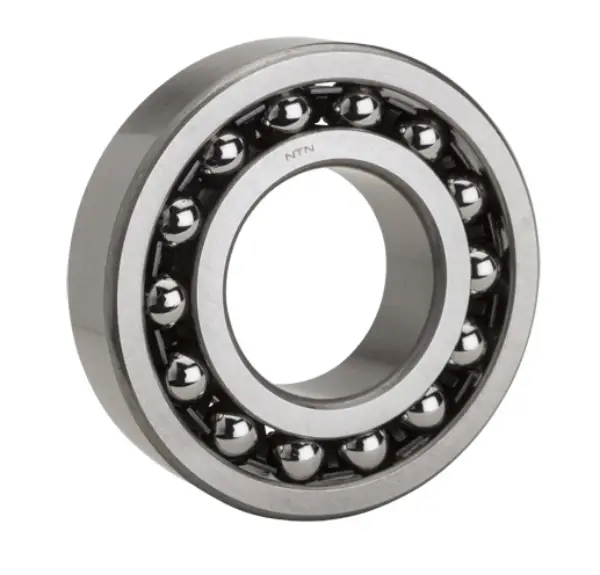

Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
58500 N
Dynamic Load Rating
129000 N
Weight
8.240 kg
Operating Temperature Range
-40 to 120 ºC

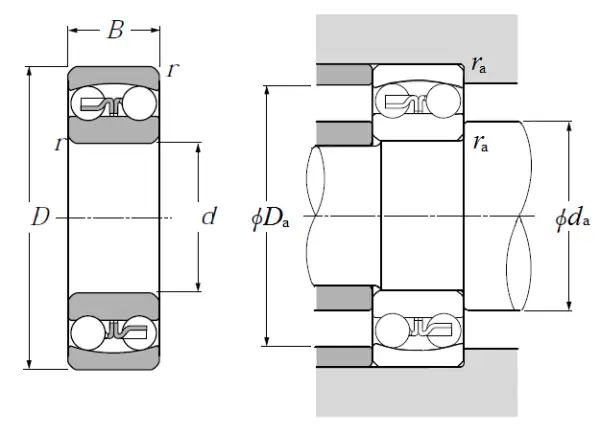

Dimensional Specifications
d
130.000 mm
D
230.000 mm
B
46.000 mm
r
3.000 mm
