NTN 1302
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
20000 RPM
Limiting Speed - Grease
16000 RPM
Y1
1.90
Y2
2.90
Y0
2.00
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
2290 N
Dynamic Load Rating
9700 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

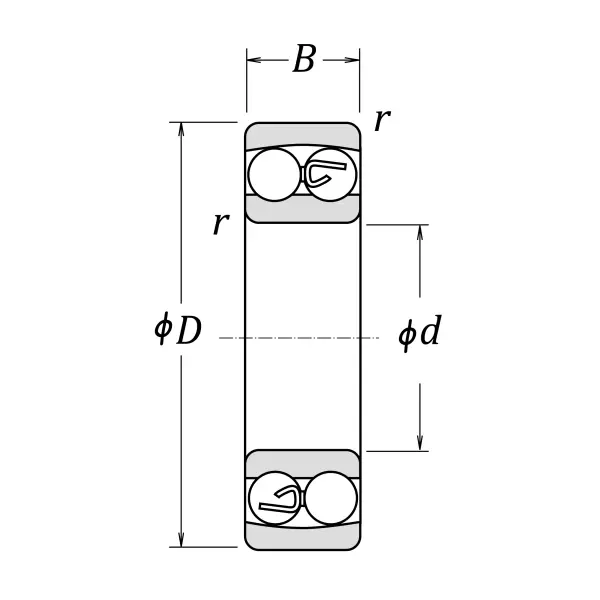

Dimensional Specifications
d
15.000 mm
D
42.000 mm
B
13.000 mm
r
1.000 mm
da min
20.000 mm
Da max
37.000 mm
ras max
1.000 mm
