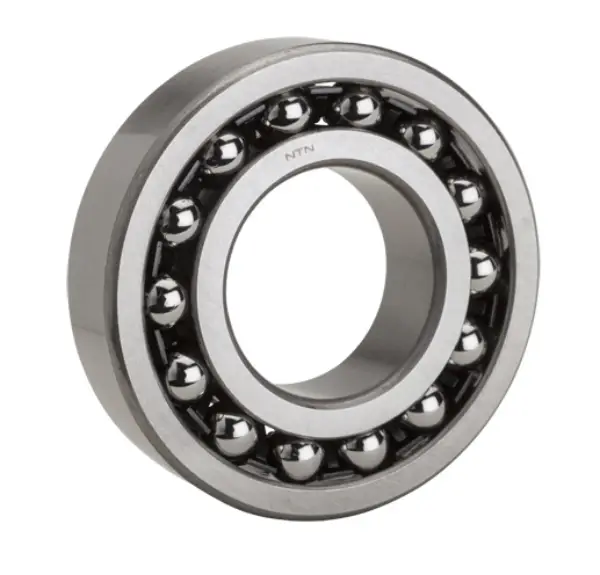

NTN 1304C3
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
15000 RPM
Limiting Speed - Grease
12000 RPM
Y1
2.20
Y2
3.40
Y0
2.30
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
3350 N
Dynamic Load Rating
12600 N
Enclosure
Open
Weight
0.162 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
20.000 mm
D
52.000 mm
B
15.000 mm
r
1.100 mm
da min
26.500 mm
Da max
45.500 mm
ras max
1.000 mm
