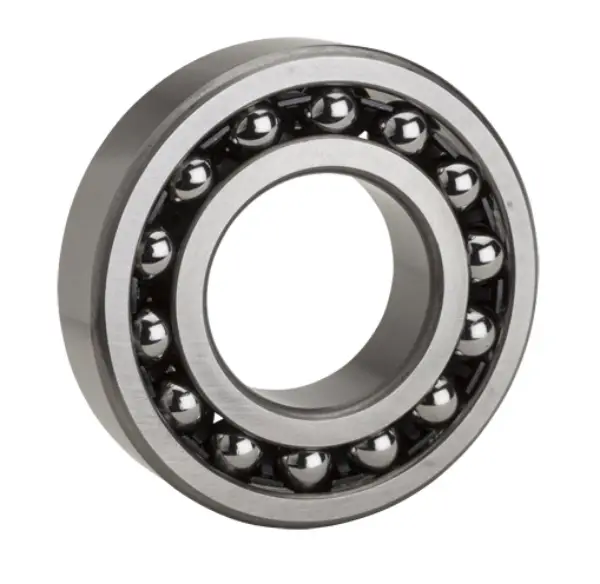

NTN 1310KC3
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
6700 RPM
Limiting Speed - Grease
5600 RPM
Y1
2.70
Y2
4.20
Y0
2.80
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
C3
Static Load Rating
14100 N
Dynamic Load Rating
43500 N
Enclosure
Open
Weight
1.183 kg
Operating Temperature Range
-40 to 120 ºC

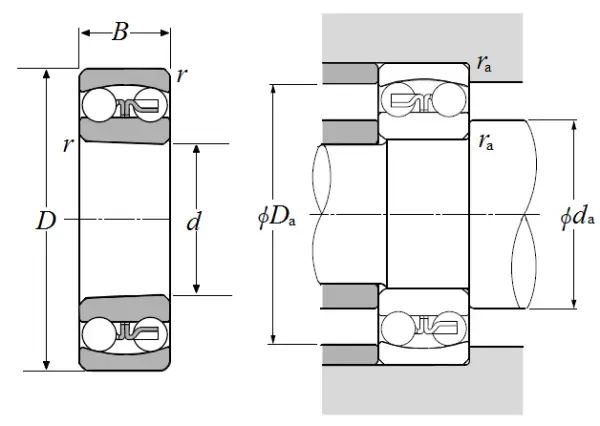

Dimensional Specifications
d
50.000 mm
D
110.000 mm
B
27.000 mm
r
2.000 mm
da min
59.000 mm
Da max
101.000 mm
ras max
2.000 mm
