NTN 1318K
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3800 RPM
Limiting Speed - Grease
3200 RPM
Y1
2.80
Y2
4.30
Y0
2.90
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
44500 N
Dynamic Load Rating
117000 N
Enclosure
Open
Weight
5.658 kg
Operating Temperature Range
-40 to 120 ºC

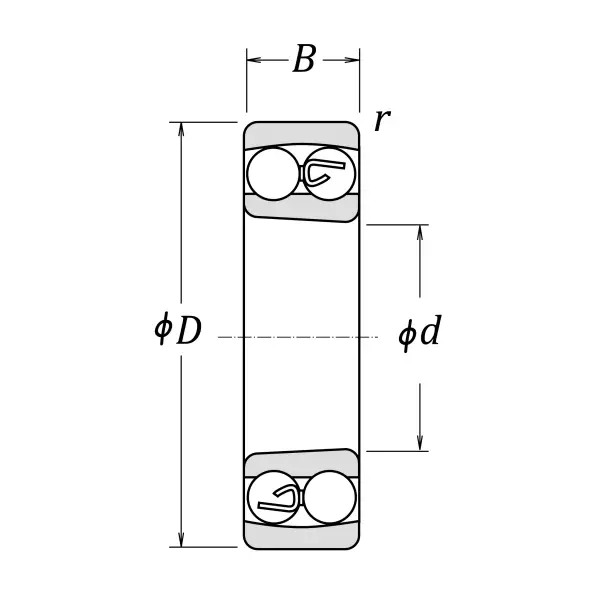

Dimensional Specifications
d
90.000 mm
D
190.000 mm
B
43.000 mm
r
3.000 mm

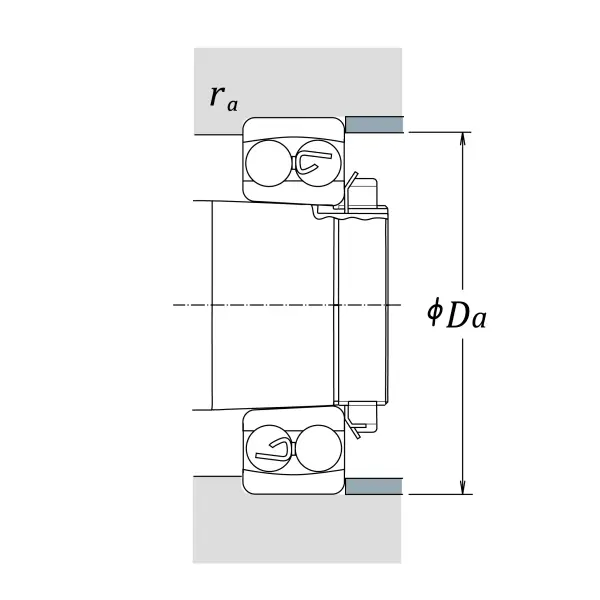

da min
103.000 mm
Da max
177.000 mm
ras max
2.500 mm
