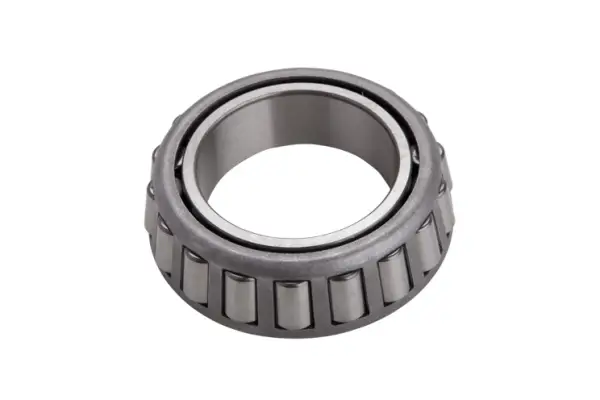

NTN 1380
Cone for Tapered Roller Bearing - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cone
Bore Type
Round
Material
Case Carburized Steel
Static Load Rating
43000 N
Dynamic Load Rating
40500 N
Weight
0.135 kg
Operating Temperature Range
-40 to 120 ºC
Y2 (Axial Load Factor)
2.05
e (Axial Load Factor)
0.29
Dimensional Specifications
B
22.225 mm
Wi
20.168 mm
R
1.500 mm
U
29.5 mm
V
27.0 mm
a (Effective Load Center)
-7.400 mm
