NTN 21305V
Spherical Roller Bearings w/ Standard Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Spherical Roller Bearing
Bore Type
Round
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
e
0.29
Y1
2.33
Y2
3.47
Y0
2.28
Series
213
Radial Internal Clearance
CN
Ring Modification
Plain
Tolerance
JIS-0 RBEC-1
Static Load Rating
37500 N
Dynamic Load Rating
48500 N
Enclosure
Open
Weight
0.257 kg
Operating Temperature Range
-40 to 120 ºC

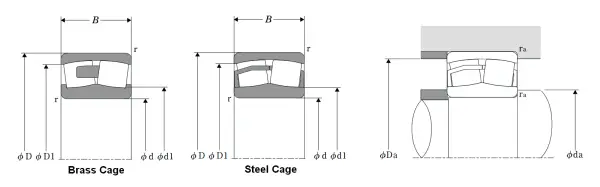

Dimensional Specifications
d
25.000 mm
D
62.000 mm
B
17.000 mm
d1
34.000 mm
D1
52.000 mm
r
1.100 mm
da min
32.000 mm
Da max
55.000 mm
ras max
1.000 mm
