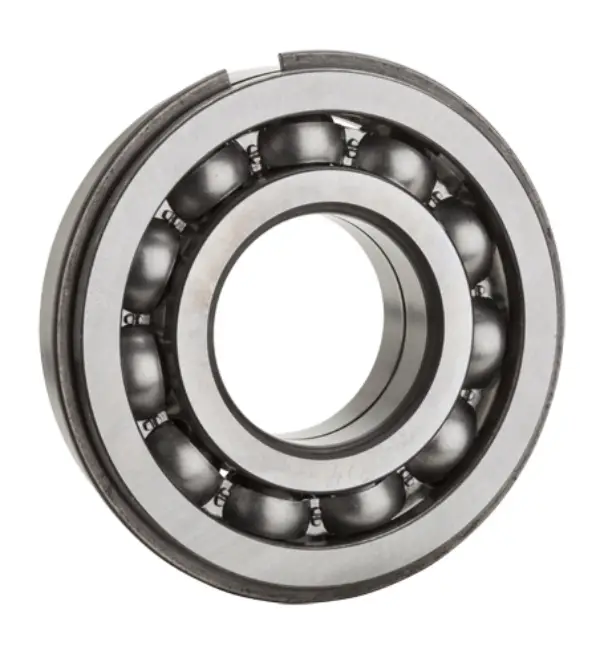

NTN 218L
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3400 RPM
Limiting Speed - Grease
2800 RPM
Style
Radial Ball Bearing
Precision
ISO Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
71460 N
Dynamic Load Rating
95980 N
Enclosure
Open
Weight
2.150 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
90.000 mm
D
160.000 mm
B
30.000 mm
D1
155.219 mm
D2
169.491 mm
a
3.708 mm
f
2.770 mm
r
2.032 mm
r1
0.500 mm
da min
99.000 mm
da max
109.000 mm
Da max
151.000 mm
ras max
2.000 mm
