NTN 2202
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
22000 RPM
Limiting Speed - Grease
18000 RPM
Y1
1.30
Y2
1.90
Y0
1.3
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
1850 N
Dynamic Load Rating
7800 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

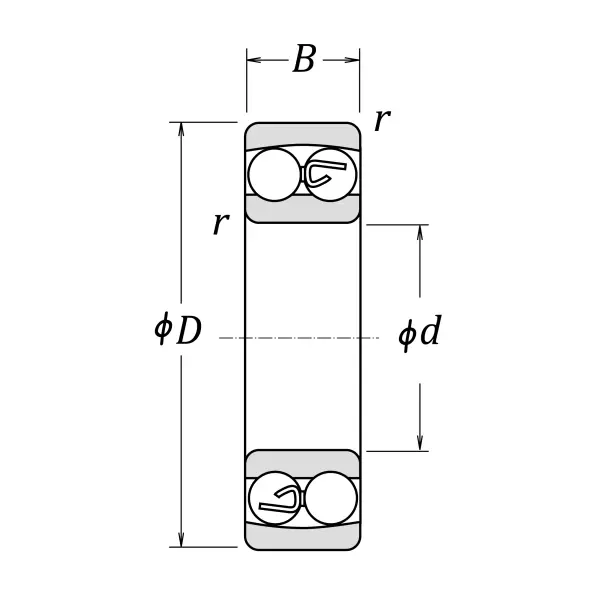

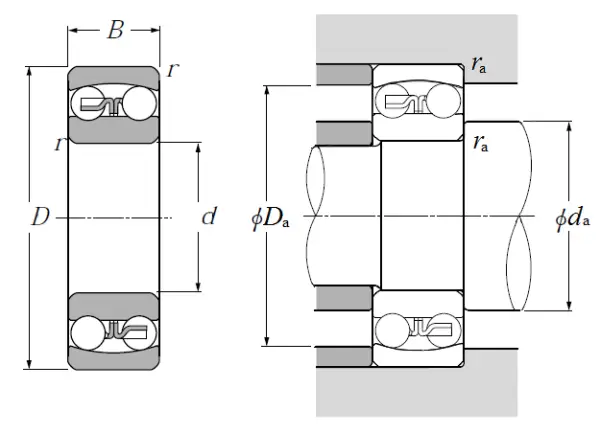

Dimensional Specifications
d
15.000 mm
D
35.000 mm
B
14.000 mm
r
0.600 mm
da min
19.000 mm
Da max
31.000 mm
ras max
0.600 mm
