NTN 2205K
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
14000 RPM
Limiting Speed - Grease
12000 RPM
Y1
1.50
Y2
2.40
Y0
1.60
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
3450 N
Dynamic Load Rating
12400 N
Enclosure
Open
Weight
0.152 kg
Operating Temperature Range
-40 to 120 ºC

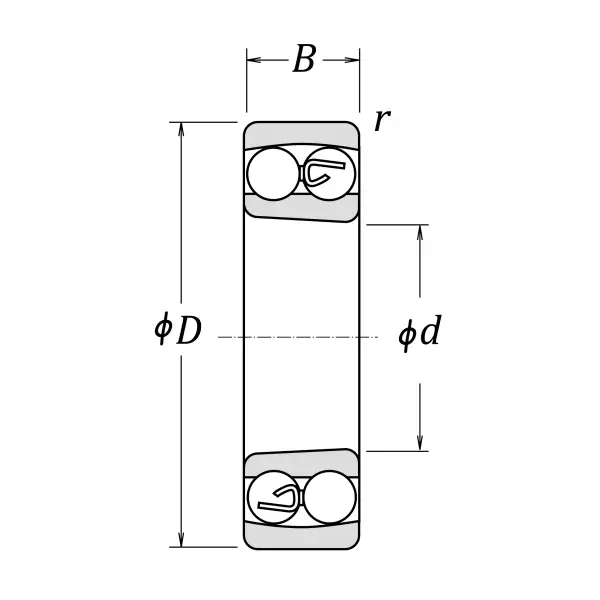

Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
18.000 mm
r
1.000 mm

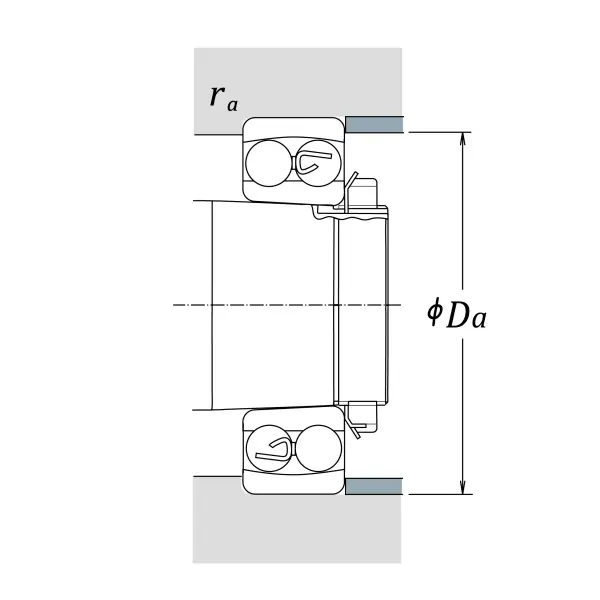

da min
30.000 mm
Da max
47.000 mm
ras max
1.000 mm
