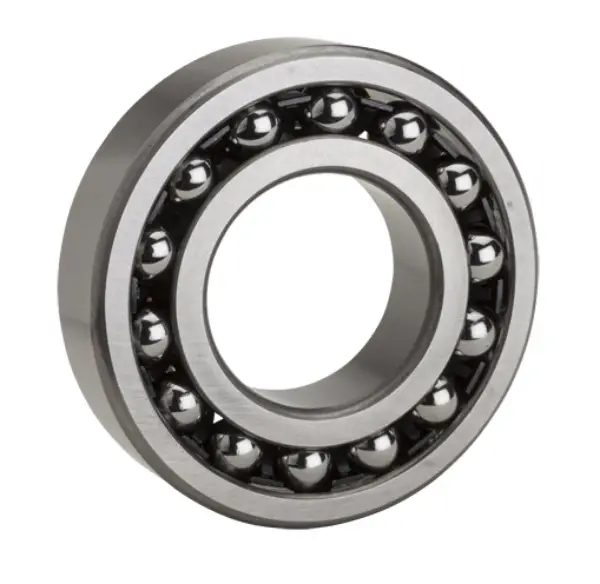

NTN 2205KEEG15
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
9200 RPM
Y1
2.40
Y2
3.70
Y0
2.50
Taper
1:12
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
3300 N
Dynamic Load Rating
12100 N
Weight
0.160 kg
Operating Temperature Range
-40 to 120 ºC

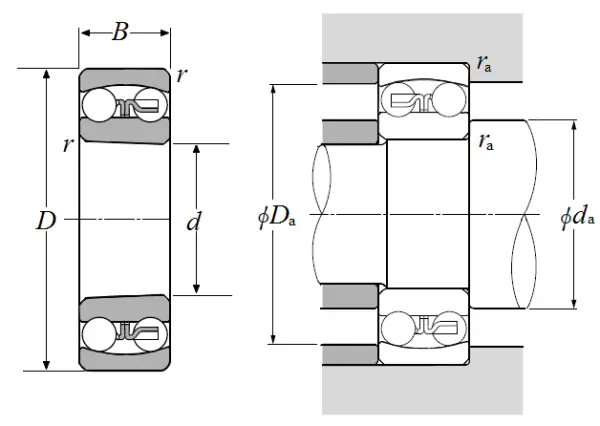

Dimensional Specifications
d
25.000 mm
D
52.000 mm
B
18.000 mm
r
1.000 mm
da min
30.000 mm
Da max
47.000 mm
ras max
1.000 mm
