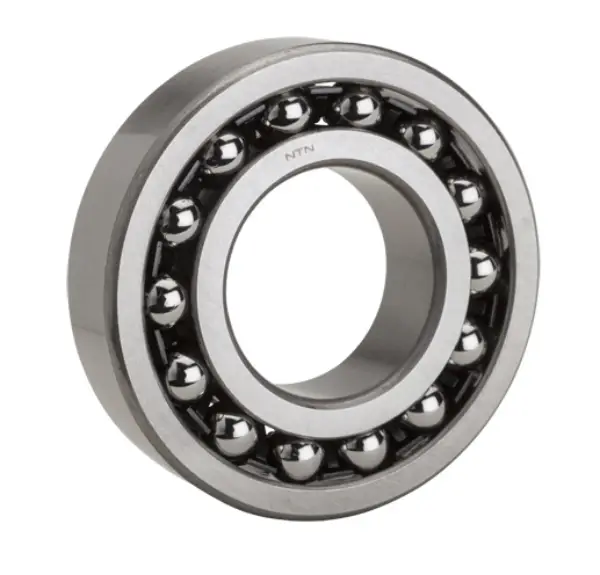

NTN 2206EEG15
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
Steel
Cage Type
One Piece
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
7700 RPM
Y0
2.70
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
4650 N
Dynamic Load Rating
15700 N
Weight
0.274 kg
Operating Temperature Range
-40 to 120 ºC

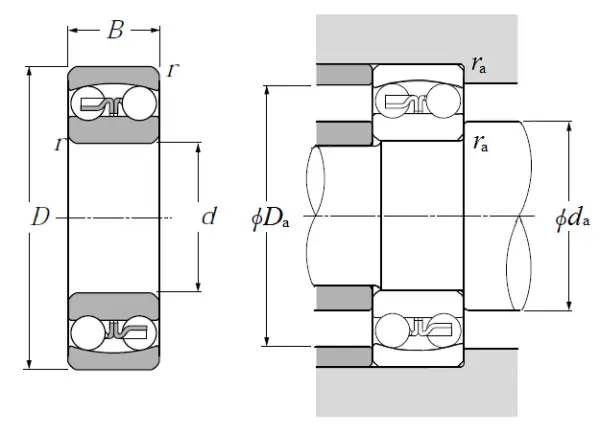

Dimensional Specifications
d
30.000 mm
D
62.000 mm
B
20.000 mm
r
1.000 mm
da min
35.000 mm
Da max
56.000 mm
