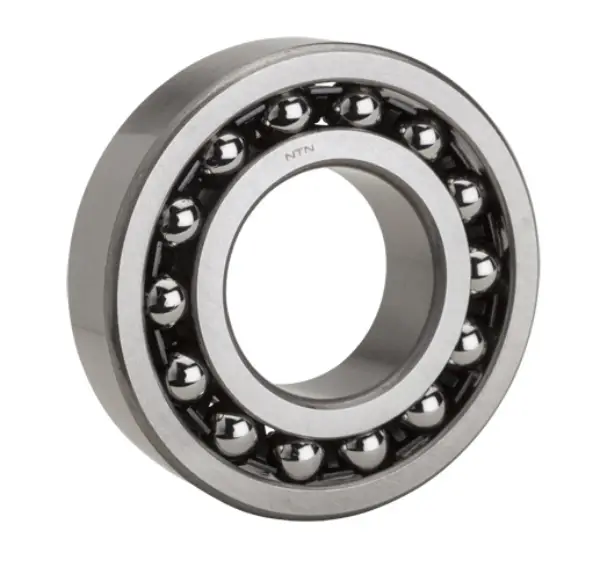

NTN 2207EEG15
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
Steel
Cage Type
One Piece
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
6600 RPM
Y0
2.90
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
5200 N
Dynamic Load Rating
15800 N
Weight
0.442 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
35.000 mm
D
72.000 mm
B
23.000 mm
r
1.100 mm
da min
41.500 mm
Da max
65.000 mm
