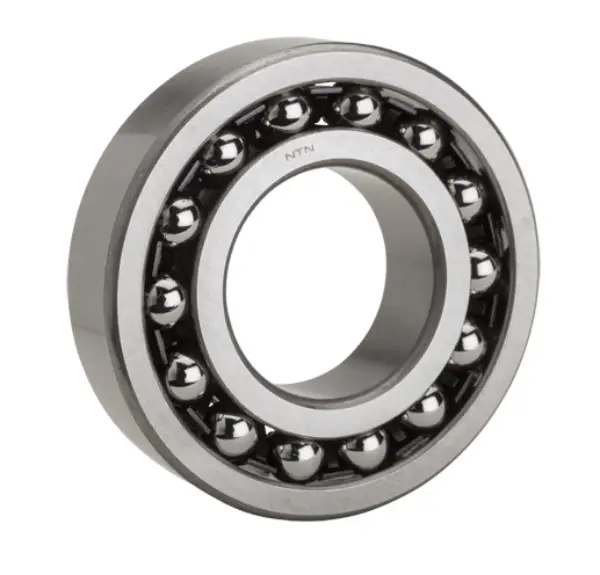

NTN 2208EEG15
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Cylindrical
Material
Steel
Cage Type
One Piece
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
5900 RPM
Y0
3.00
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
6500 N
Dynamic Load Rating
19200 N
Weight
0.528 kg
Operating Temperature Range
-40 to 120 ºC

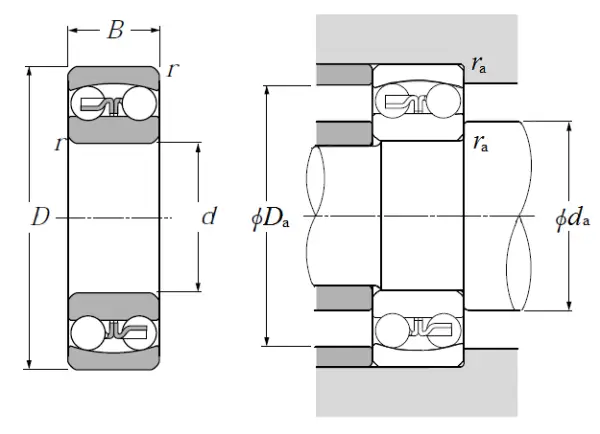

Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
23.000 mm
r
1.100 mm
da min
46.500 mm
Da max
73.000 mm
