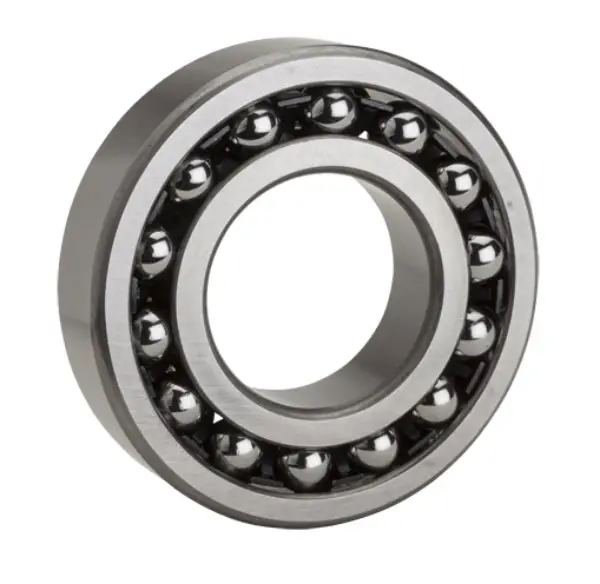

NTN 2210KEEG15
Self Aligning Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Self Aligning Ball Bearing
Bore Type
Tapered
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Limiting Speed - Grease
5000 RPM
Y1
3.20
Y2
4.90
Y0
3.30
Taper
1:12
Precision
Class 0
Configuration
One
Radial Internal Clearance
CN
Static Load Rating
8100 N
Dynamic Load Rating
22700 N
Weight
0.593 kg
Operating Temperature Range
-40 to 120 ºC

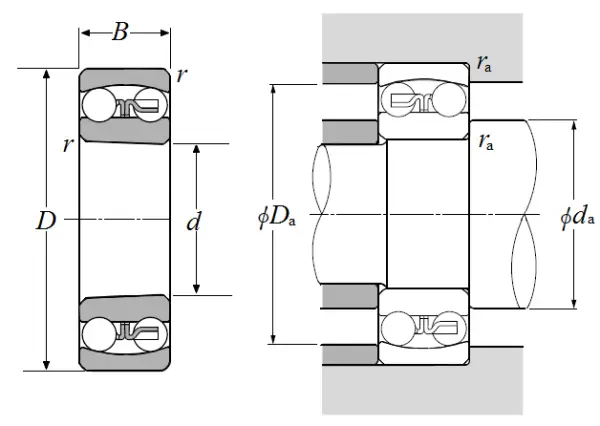

Dimensional Specifications
d
50.000 mm
D
90.000 mm
B
23.000 mm
r
1.100 mm
da min
56.500 mm
Da max
83.500 mm
ras max
1.000 mm
